Equipment Name

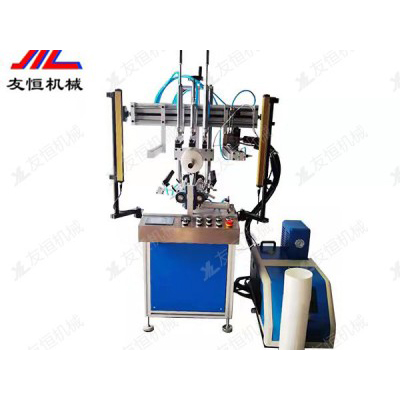

Single sheet semi-automatic cylinder molding machine
Main Functions
Sheet-fed manual loading, manual pickup
Equipment optional function
Automatic loading and unloading
Raw material name
White cardboard (other papers need to be customized)
Name of finished product
Paper cylinder
Thickness
0.5-1.5MM(other thicknesses are customized)
Finished size/diameter
45-200mm(Special can be customized)
Finished Size/Length
10-400mm(Special customized)
Production speed
500-800PCS/hour
Voltage and power
220VAC 1KW
Required air pressure
3-6kg/cm2
Machine size
1600*950*950mm
