Product name: Shenzhen shockproof bracket
After the May 12, 2008 Wenchuan earthquake, the Ministry of Construction revised the original GB50011-2001 (Code for Seismic Design of Buildings). On October 9, 2014, the Ministry of Housing and Urban-Rural Development and the General Administration of Quality Supervision, Inspection and Quarantine officially promulgated (Code for Seismic Design of Mechanical and Electrical Engineering Buildings) as a national standard, numbered GB50981-2014, which will be enforced from August 1, 2015.
Basic design requirements: The standard is to make the building's water supply and drainage, heating, ventilation, air conditioning, gas, heat, communication, fire protection, smoke exhaust and other engineering facilities earthquake-resistant to prevent secondary damage
Design scope of seismic supports and hangers :
1) Application scope of seismic supports and hangers for piping systems such as hot and cold water, fire protection, and air conditioning:
All equipment in suspended pipes exceeding 1.8kN; all domestic water supply and fire protection pipe systems greater than or equal to DN65
2) Air conditioning and ventilation pipe seismic support and hanger application scope: all duct systems with a diameter greater than or equal to 0.7m; all rectangular ducts with a rectangular cross-sectional area greater than or equal to 0.38㎡
3) The scope of application of seismic supports and hangers for power system pipelines and cable tray systems: all electrical piping with an inner diameter greater than or equal to 60mm; all cable trays, cable ladders, and cable trays with a gravity greater than or equal to 150N/m.
Cable tray support (cable box, bus duct)
Pipeline support (water supply and drainage, fire protection pipelines)
Combined bracket (applicable to all pipes)

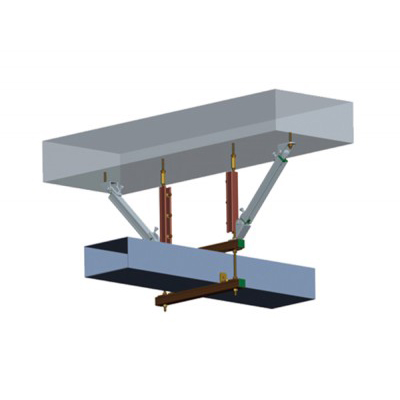

Rectangular duct support (applicable to air conditioning, smoke exhaust duct)
Shenzhen Guoli Technology Co., Ltd. is a Chinese building electromechanical seismic solution provider, aiming to provide necessary protection for pipelines, electrical, fire protection and ventilation systems in earthquake disasters.
As the preferred brand in the domestic building electromechanical seismic support and hanger industry, the seismic support and hanger products and services provided by Guoli Company have complete intellectual property rights. The products comply with the national standard GB/50981-2014 and the industry standard CJ 476-2015. It is also a participating unit in the compilation of the China Engineering Construction Association standard "Seismic Support and Installation and Acceptance Regulations". Guoli Company has a high-quality, professional R&D team and a group of senior expert consultants, and has developed multiple series of seismic support systems, including cable tray support, pipeline seismic support, duct support, etc.
